Tempering

​

H&H offers a complete line of glass tempering furnaces in partnership with furnace manufacturers in China, from convection glass furnaces to continuous and glass bending furnaces.

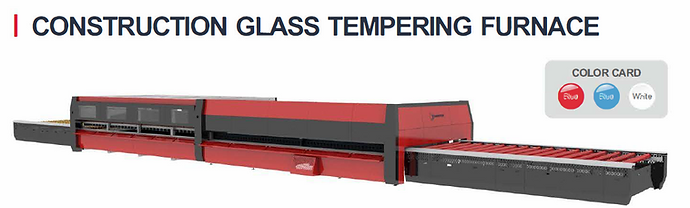

Glass tempering machine

Technical Description

  • Heating Desigct" is adopted for the heating system. Thermal radiation + convective heat transfer realizes the efficient production of Low-E glass;

​

  • Unique design of heat recovery device to improve heat utilization efficiciency;

​

  • The fine design of convection air tubes ensures air collection effect and improves the efficiency of heart transfer

​

  • The high quality vortech blower with low energy consumption and quick repair design, the daily maintenance is fast and convenient.

​

Applicable Glass Types

Clear float glass, ultra-clear glass, silk screen printing glass, tinted glass, Low-E glass, etc.

​

Scope of application

High quality home appliance glass, decoration glass, curtain wall glass, Low-E glass, etc.

Model                          Max. Loading Area         Min. Glass Size        Glass Thickness          Capacity                 Running Power

TGP5020X4.0                 5000X2000mm              300X300mm             4.0-19mm            ≥19 batchese/h               630kw

TGP5024X4.0-2              5000X2440mm              300X300mm             4.0-19mm            ≥25 batchese/h              1250kw

TGP6026X4.0-V              6000X2650mm              300X300mm             4.0-19mm            ≥19 batchese/h               980kw

TGP7026X4.0-2S-V         7000X2650mm              300X300mm             4.0-19mm            ≥23 batchese/h              2050kw

TGP6030X5.0-V              6000X3000mm              350X350mm             5.0-19mm            ≥17 batchese/h              1120kw

* Forced convection system as an option

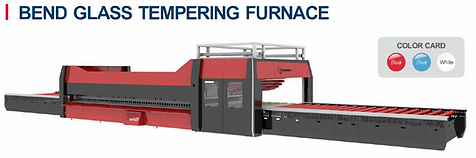

Technical Description

​

  • Advanced CNC processing bending structure, ensures accuracy of bending glass

  • Simple computer radius adjustment technology, can reduce more adjustment time.

  • Unique compressed roller stucture reduces teh length of straight edges at both ends of the curved,

  • Hydraulic drive system which can improve curve forming stability.

  • With manual radius adjustment structure, can produce multi radius bend tempering glass.

​

Scope of application

​

Home appliance glass, furniture glass, car side wind shield glass, shower room glass, architucutre curtain-wall glass, kitchen ventilator, showcase glass, freezer glass, etc.

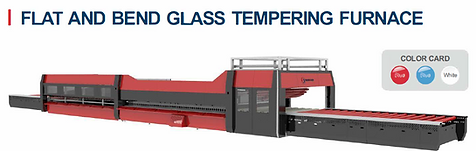

Glass tempering machine
Glass tempering machine

Model                                            Max. Loading Area         Min. Glass Size        Glass Thickness          Capacity                 Running Power

HWG0813X3.2-3                             800X1300mm                350X200mm             3.2-12mm            ≥50 pieces/h                 550kw

HWG1524X5.0-2                             1500X1300mm              400X400mm             5.0-12mm            ≥27 pieces/h                 770kw

HWG3624X6.0                                3600X2440mm              400X400mm             6.0-12mm            ≥12 pieces/h                 680kw

NTPWG50 13X3.2+0.8X3.2            800X1300mm                350X200mm             3.2-12mm            ≥50 pieces/h                 550kw

NTPWG50 24X4.0+15X5.0             1500X2440mm              400X400mm             5.0-12mm            ≥27 pieces/h                 770kw

NTPWG60 26X4.2+20X5.0             2000X2650mm              400X400mm             5.0-12mm            ≥27 pieces/h                 950kw

* Forced convection system as an option

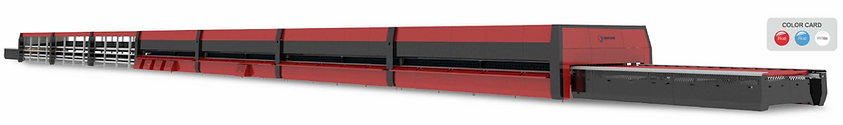

Glass tempering machine
Glass tempering machine

Technical Description

​

  • The multi heating zone design can shorten the heating cycle and ensure the ultra-high optical properties of tempered glass;

  • The temperature zone from low temperature to high temprature, which can reduce the detects caused by temperature difference when glass enters the heating chamber;

  • Multi acceleration mode: four independently driven acceleration zones can accelerate and decelerate synchronously. The glass position is automatically detected in the four heating zones for multiple synchronous acceleration to improve the glass quality;

  • Quick opening and closing system of quenching and cooling section to help quickly handle the emergency problems in quenching and cooling section;

  • The spacing of ceramic rollers in arranged at unequal intervals according to the thermal deformation of glass.

​

Scope of application

​

High quality solar panel glass.

Model                                           Max. Glass Size        Heating Section Length        Glass Thickness          Capacity                 Running Power

LPG2513X2.5-36                             2500X1300mm                     36m                             2.5-4mm               1050 ㎡/h                    3840kw

LPG2513X2.5-42                             2500X1400mm                     42m                             2.5-4mm               1243 ãŽ¡/h                    4240kw

LPG2514X2.5-48                             2500X1400mm                     48m                             2.5-4mm               1432 ãŽ¡/h                    4700kw

LPG2514X2.5-54                             2500X1400mm                     54m                             2.5-4mm               1626 ãŽ¡/h                    5140kw

LPG2514X2.5-60                             2500X1400mm                     60m                             2.5-4mm               1814 ãŽ¡/h                    5550kw

* Forced convection system as an option
