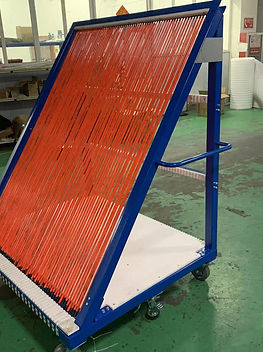

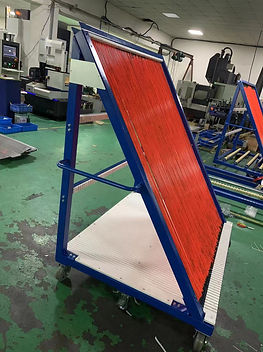

HARP RACK WITH FULL BASE
HHHRB SERIES



The Harp Rack is the only product on the market that can simultaneously satisfy the conditions of “must be stored upright” and “needs categorized storage and retrieval”. It’s specifically designed for the categorization, transportation, and storage of glass panels. When not in use, it can be disassembled, saving transportation costs.

01

Application

The Harp Rack is designed for seamless glass management. It features long and short plastic-covered rods, ensuring easy and protected glass sliding. There are numerous hole locations for custom spacing, allowing you to utilize all holes for precise spacing (perfect for monolithic glass) or skip a hole for a generous spacing (ideal for IG units).

02

 Features

  • Ensures effortless and secure glass movement

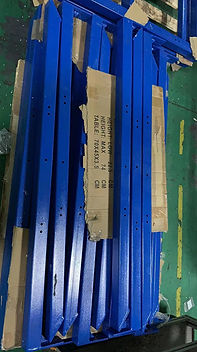

  • Ships knocked down for freight savings

  • Two front-mounted foot locks for stability

  • Bottom surface is un-grooved for maximum rod spacing flexibility

  • Low-friction, high-density Polyethylene flooring for easy sliding of glass

03

 Specification

Type                                       HHHRB-50              HHRB-100

​

Length                                     1300mm                 2200mm

​

Width                                       1200mm                 1200mm

​

Height                                      1629mm                1629mm

​

Sorting thickness                     <12mm                   <8mm

​

Slots Q'ty                                 50                            100



Capacity                                  1500kg                   1500kg

​

Weight                                     160kg                       300kg
